STL09S12F, STL15S15F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter

Superworld Electronics

The STL09S12F by Superworld Electronics is a (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter. Below is the official datasheet preview.

📥 Download Datasheet

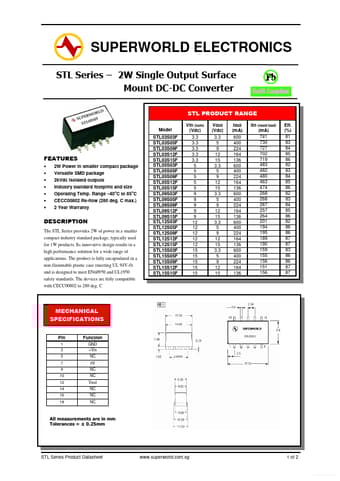

STL09S12F (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter by Superworld Electronics - Datasheet Preview — Official preview page of the **STL09S12F** (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter datasheet (Superworld Electronics).

Datasheet Details

Part number	STL09S12F, STL15S15F
Manufacturer	Superworld Electronics
File Size	162.47 KB
Description	(STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter
Datasheet	STL15S15F_SuperworldElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STL09S12F, STL15S15F. Please refer to the document for exact specifications by model.
Additional preview pages of the STL09S12F datasheet.

STL09S12F Product details

Description

The STL Series provides 2W of power in a smaller compact industry standard package, typically used for 1W products.

Features

2W Power in smaller compact package Versatile SMD package 2kVdc isolated outputs Industry standard footprint and size Operating Temp. Range.
40oC to 85oC CECC00802 Re-flow (280 deg. C max. ) 2 Year Warranty.
