SGN02G72F1BQ1SA-CCRT, SGN02G72F1BQ1SA 204 Pin ECC SO-DIMM

SGN02G72F1BQ1SA-CCRT Description

Data Sheet Rev.1.0 16.09.2013 2048MB DDR3 * SDRAM ECC SO-UDIMM 204 Pin ECC SO-DIMM SGN02G72F1BQ1SA-xx[E/W]RT 2GByte in FBGA Technology RoHS.

SGN02G72F1BQ1SA-CCRT Features

* 204-pin 72-bit DDR3 Small Outline, Dual-In-Line Double Data Rate synchronous DRAM Module Module organization: single rank 256M x 72 VDD = 1.5V ±0.075V, VDDQ 1.5V ±0.075V 1.5V I/O ( SSTL_15 compatible) Fly-by-bus with termination for C/A & CLK bus 2 On-board I C t

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SGN02G72F1BQ1SA-CCRT, SGN02G72F1BQ1SA. Please refer to the document for exact specifications by model.

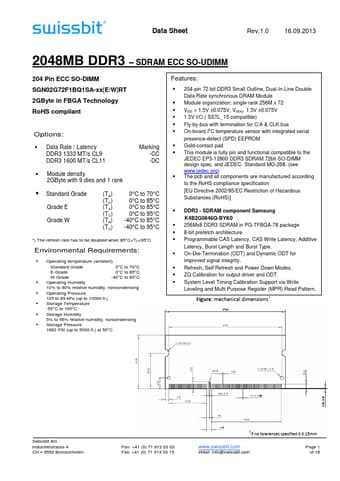

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SGN02G72F1BQ1SA-CCRT, SGN02G72F1BQ1SA
Manufacturer
Swissbit
File Size
516.39 KB
Datasheet
SGN02G72F1BQ1SA-Swissbit.pdf
Description
204 Pin ECC SO-DIMM
Note
This datasheet PDF includes multiple part numbers: SGN02G72F1BQ1SA-CCRT, SGN02G72F1BQ1SA.
Please refer to the document for exact specifications by model.
