SGN02G72F1BQ1SA-DCRT, SGN02G72F1BQ1SA - 204 Pin ECC SO-DIMM

Name: SGN02G72F1BQ1SA-DCRT
SKU: SGN02G72F1BQ1SA-DCRT-813207

Swissbit

The SGN02G72F1BQ1SA-DCRT by Swissbit is a 204 Pin ECC SO-DIMM. Below is the official datasheet preview.

Datasheet Details

Part number	SGN02G72F1BQ1SA-DCRT, SGN02G72F1BQ1SA
Manufacturer	Swissbit
File Size	516.39 KB
Description	204 Pin ECC SO-DIMM
Datasheet	SGN02G72F1BQ1SA-Swissbit.pdf
Note	This datasheet PDF includes multiple part numbers: SGN02G72F1BQ1SA-DCRT, SGN02G72F1BQ1SA. Please refer to the document for exact specifications by model.

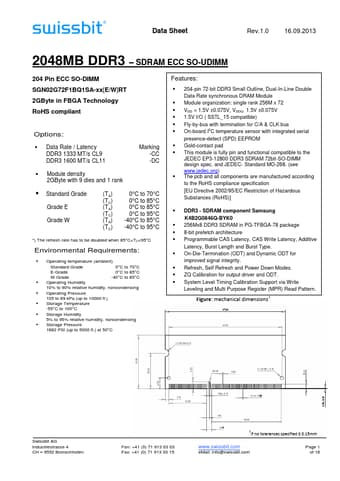

Additional preview pages of the SGN02G72F1BQ1SA-DCRT datasheet.

204-pin 72-bit DDR3 Small Outline, Dual-In-Line Double Data Rate synchronous DRAM Module Module organization: single rank 256M x 72 VDD = 1.5V ±0.075V, VDDQ 1.5V ±0.075V 1.5V I/O ( SSTL_15 compatible) Fly-by-bus with termination for C/A & CLK bus 2 On-board I C temperature sensor with integrated serial presence-detect (SPD) EEPROM Gold-contact pad This module is fully pin and functional compatible to the JEDEC EP3-12800 DDR3 SDRAM 72bit-SO-DIMM design spec. a.
