BSS138 - SMD Power MOSFET Transistor

Datasheet Summary

Description

Marking Code Drain-Source Voltage Gate-Source Voltage Drain Current Continuous Drain Current Pulsed (tp≤10µS) Drain Power Dissipation Thermal Resistance, Junction to Ambient Storage Temperature Range BSS138 J1 50 ± 20 200 800 225 556 -55 to +150 TAITRON COMPONENTS INCORPORATED www.taitroncomponent

Features

  • Low On-Resistance:3.5Ω.
  • Low input capacitance:40pF.
  • Low output capacitance:12pF.
  • Low threshole:1.5V.
  • Fast switching speed:20nS.
  • RoHS Compliance.

📥 Download Datasheet

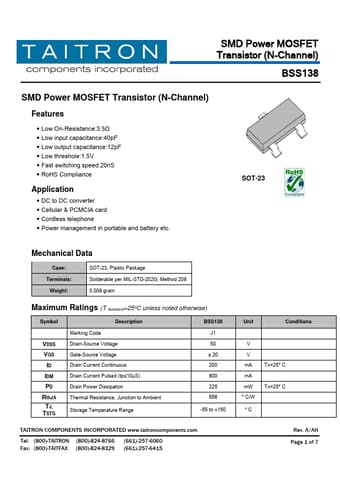

Datasheet preview – BSS138

Datasheet Details

Part number BSS138
Manufacturer TAITRON
File Size 270.80 KB
Description SMD Power MOSFET Transistor
Datasheet download datasheet BSS138 Datasheet
Additional preview pages of the BSS138 datasheet.
