2SC3834 - Silicon NPN Transistor

Datasheet Summary

Description

It is intented for use in power amplifier and switching applications.

Max.

📥 Download Datasheet

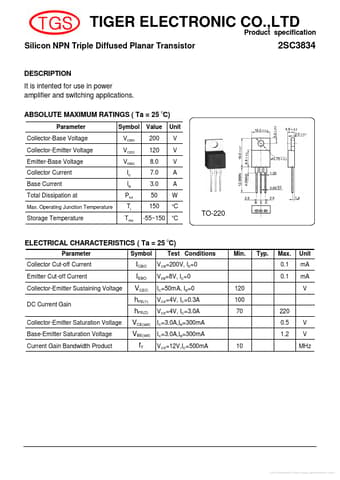

Datasheet preview – 2SC3834

Datasheet Details

Part number 2SC3834
Manufacturer TGS
File Size 77.53 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SC3834 Datasheet
Additional preview pages of the 2SC3834 datasheet.

📁 Similar Datasheet

  • 2SC3834 - Silicon NPN Transistor (Sanken electric)
  • 2SC3834 - SWITCH NPN TRANSISTOR (UTC)
  • 2SC3834 - NPN Transistor (INCHANGE)
  • 2SC3834 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3834 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC3834F - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC3834Y - Silicon NPN Transistor (Inchange Semiconductor)
  • 2SC383 - NPN Transistor (Toshiba Semiconductor)
  • 2SC3830 - Silicon NPN Transistor (Sanken electric)
  • 2SC3830 - SILICON POWER TRANSISTOR (SavantIC)
Other Datasheets by TGS
  • 2SC1008 - Transistors
  • 2SC1815LT1 - Plastic-Encapsulate Transistors
  • 2SC2314 - NPN EPITAXIAL PLANAR SILICON TRANSISTORS
  • 2SC4375 - NPN Transistor
  • 2SC945 - Plastic-Encapsulate Transistors

Full PDF Text Transcription

Click to expand full text
TIGER ELECTRONIC CO.,LTD Silicon NPN Triple Diffused Planar Transistor Product specification 2SC3834 DESCRIPTION It is intented for use in power amplifier and switching applications. ABSOLUTE MAXIMUM RATINGS ( Ta = 25 C) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Total Dissipation at Max. Operating Junction Temperature O Symbol VCBO VCEO VEBO IC IB Ptot Tj Tstg Value 200 120 8.0 7.0 3.
