PA0016 - Intrinsically Safe Latching Solenoid

Datasheet Summary

Description

This example of an intrinsic safe-latching solenoid with high speed “extend” operation was originally designed to protect run-away pumps.

A similar design can be customized to fit a variety of safety www.DataSheet4U.com applications.

Features

  • High speed extend and retract Built in protection circuitry Can be configured to customer electronic drivers Environmentally protected Specifications: English (metric as applies) Stroke (can be designed to specification) Reaction time (extend/retract) Resistance at 70˚F Supply voltage Inductance at 1 KHZ Operating Voltage Operating Temperature Net Spring Preload .120 inch 17-26 milliseconds 13.0 ± 05 Ω 6,12, or 24 26 mH max. 6.8-7.8 Volts -40 to 140 °F -.

📥 Download Datasheet

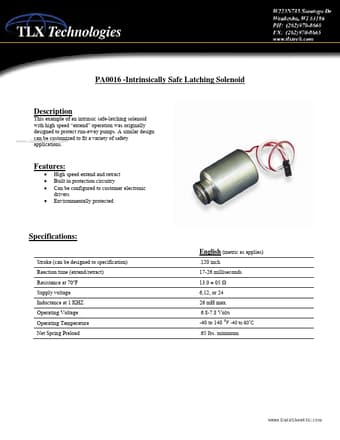

Datasheet preview – PA0016

Datasheet Details

Part number PA0016
Manufacturer TLX
File Size 361.31 KB
Description Intrinsically Safe Latching Solenoid
Datasheet download datasheet PA0016 Datasheet
Additional preview pages of the PA0016 datasheet.
