PA004EM P-Channel MOSFET

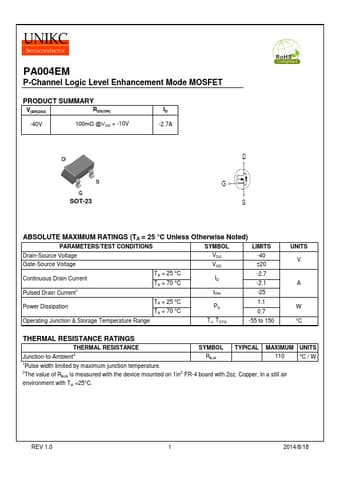

PA004EM P-Channel Logic Level Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) -40V 100mΩ @VGS = -10V ID -2.7A SOT-23 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS -40 Gate-Source Voltage VGS ±20 Continuous Drain Current Pulsed Drain Current1 TA = 25 °C TA = 70 °C ID IDM -2.7 -2.1 -25 Power Dissipation TA = 25 °C TA = 70 °C PD 1.1 0.7 Operating Junction & Storage Temperature Range TJ.
