TK11218C Datasheet - TOKO

LDO Regulator

TK11218C Features

* TK112xxC

* Very low Dropout Voltage. (Vdrop=105mV at 100mA)

* Very good stability (CL=0.1µF is stable for any type capacitor with 2.5V ≤ Vout)

* High Precision output Voltage (±1.5% or ±50mV)

* Good ripple rejection ratio (80dB at 1KHz)

* Wide operating volt

TK11218C General Description

The TK112xxC is an integrated circuit with a silicon monolithic bipolar structure. The regulator is of the low saturation voltage output type with very little quiescent current (65µA). The PNP power transistor is built-in. The I/O volt.

TK11218C Datasheet (619.49 KB)

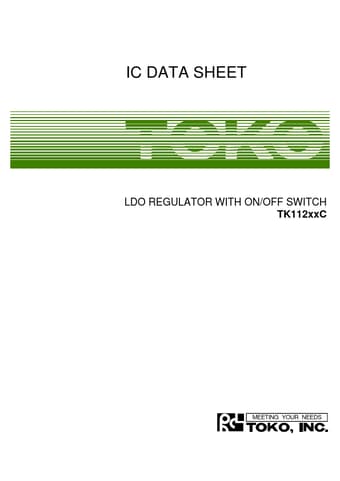

TK11218C Datasheet Preview — Preview of TK11218C PDF

Datasheet Details

Part number:

TK11218C

Manufacturer:

TOKO

File Size:

619.49 KB

Description:

Ldo regulator.
