TK11345B

VOLTAGE REGULATOR WITH ON/OFF SWITCH

TK11345B Features

* High Voltage Precision at ± 2.0% Active Low On/Off Control Very Low Dropout Voltage 80 mV at 30 mA Very Low Noise Very Small SOT-23L or SOT-89-5 Surface Mount Packages s Internal Thermal Shutdown s s s s s s Short Circuit Protection APPLICATIONS s s s s s s s s s Battery Powered Systems Cellular Te

TK11345B General Description

The TK113xxB is a low dropout linear regulator with a builtin electronic switch. The device is in the ON state when the control pin is pulled to a low level. An external capacitor can be connected to the noise bypass pin to lower the output noise level to 30 µVrms. An internal PNP pass transistor is.

TK11345B Datasheet (152.26 KB)

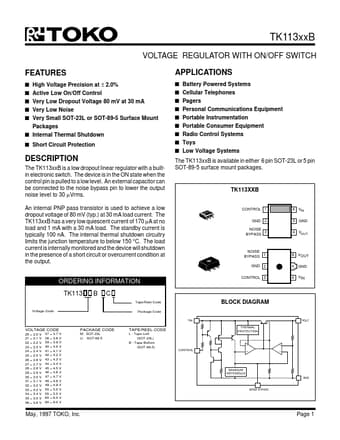

Preview of TK11345B PDF

Datasheet Details

Part number:

TK11345B

Manufacturer:

TOKO

File Size:

152.26 KB

Description:

Voltage regulator with on/off switch.
