TK71739S, TK71715S - LOW DROPOUT VOLTAGE REGULATOR

Name: TK71739S
SKU: TK71739S-1217648

TOKO

The TK71739S by TOKO is a LOW DROPOUT VOLTAGE REGULATOR. Below is the official datasheet preview.

Datasheet Details

Part number	TK71739S, TK71715S
Manufacturer	TOKO
File Size	146.10 KB
Description	LOW DROPOUT VOLTAGE REGULATOR
Datasheet	TK71715S-TOKO.pdf
Note	This datasheet PDF includes multiple part numbers: TK71739S, TK71715S. Please refer to the document for exact specifications by model.

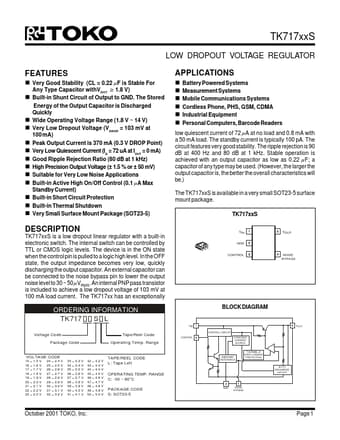

Additional preview pages of the TK71739S datasheet.

n Very Good Stability (CL = 0.22 mF is Stable For Any Type Capacitor withVOUT ³ 1.8 V) n Built-in Shunt Circuit of Output to GND. The Stored Energy of the Output Capacitor is Discharged Quickly n Wide Operating Voltage Range (1.8 V ~ 14 V) n Very Low Dropout Voltage (V = 103 mV at DROP 100 mA) n Peak Output Current is 370 mA (0.3 V DROP Point) n Very Low Quiescent Current (IQ = 72 uA at IOUT = 0 mA) n Good Ripple Rejection Ratio (80 dB at 1 kHz) n High Precision Output Voltage (± 1.5 % or ± 50 m.
