TMI8262 - Dual-Bridge Motor Controller

Datasheet Summary

Description

The TMI8262 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications.

The device has two H-bridge drivers, and can drive a bipolar stepper motor or two DC motors.

Features

  • 8-V to 40-V Operating Supply Voltage Range.
  • 1.6-A Maximum Drive Current at 24 V and TA=25℃.
  • Dual H-Bridge Current Control Motor.
  • Drive a Bipolar Stepper or Two DC Motors.
  • Four Level Winding Current Control.
  • Multiple Decay Modes.
  • Mixed Decay.
  • Slow Decay.
  • Fast Decay.
  • Industry Standard Parallel Digital Control Interface.
  • Low Current Sleep Mode.
  • Built In 3.3-V Reference Output Small Package and Footprint.
  • Protectio.

📥 Download Datasheet

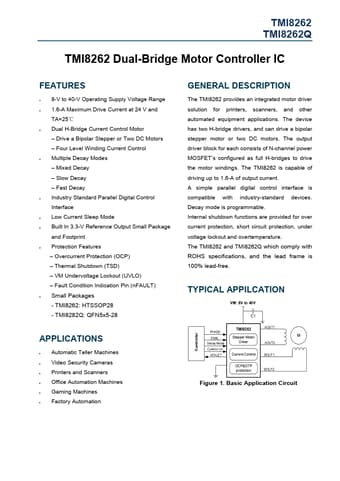

Datasheet preview – TMI8262
