TMI8262Q Datasheet, Controller, TOLL Microelectronic

TMI8262Q Features

  • Controller
  • 8-V to 40-V Operating Supply Voltage Range
  • 1.6-A Maximum Drive Current at 24 V and TA=25℃
  • Dual H-Bridge Current Control Motor
      – Drive a Bip

PDF File Details

Part number:

TMI8262Q

Manufacturer:

TOLL Microelectronic

File Size:

2.36MB

Download:

📄 Datasheet

Description:

Dual-bridge motor controller. The TMI8262 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The devi

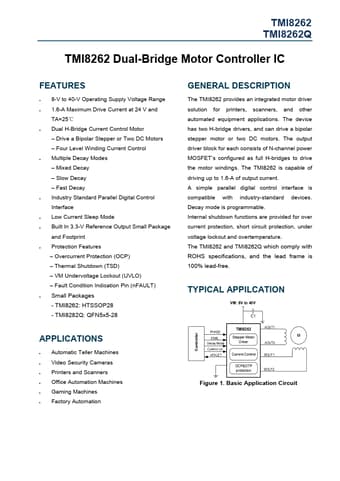

Datasheet Preview: TMI8262Q 📥 Download PDF (2.36MB)
Page 2 of TMI8262Q Page 3 of TMI8262Q

TMI8262Q Application

  • Applications The device has two H-bridge drivers, and can drive a bipolar stepper motor or two DC motors. The output driver block for each consists
