TMI8721-Q1 - Automotive Single-Channel Smart Gate Driver

Datasheet Summary

Description

(1) AEC Q100-002 states that HBM stress should comply with ANSI/ESDA/JEDEC JS-001 specification.

Features

  • ÿ AEC-Q100 compliant for automotive.

📥 Download Datasheet

Datasheet preview – TMI8721-Q1

Datasheet Details

Part number TMI8721-Q1
Manufacturer TOLL Microelectronic
File Size 2.87 MB
Description Automotive Single-Channel Smart Gate Driver
Datasheet download datasheet TMI8721-Q1 Datasheet
Additional preview pages of the TMI8721-Q1 datasheet.

📁 Similar Datasheet

  • TMI8150B - 5V 5-Channel Micro STM&DCMotor Driver (TOLL)
  • TMI3108 - 1.5MHz 1A Synchronous Step-DownConverter (TOLL)
  • TMI31602H - 2A Synchronous Step-Down Converter (TOLL)
  • TMI3252 - 600kHz 18V 2A Synchronous COT Step-Down Converter (TOLL)
  • TMI3252S - 600kHz 18V 2A Synchronous COT Step-Down Converter (TOLL)
  • TMI3252SH - 1MHz 18V 2A Synchronous COT Step-Down Converter (TOLL)
  • TMI3252T - 600kHz 18V 2A Synchronous COT Step-Down Converter (TOLL)
  • TMI3255S - 5A Synchronous COT Step-Down Converter (TOLL)
  • TMI3281 - 18V 2A Synchronous Step-Down Converter (TOLL)
  • TMI3351 - Wide Input Range Buck Converter (TOLL)
Other Datasheets by TOLL Microelectronic
  • TMI8037 - 500mA LNB-Power Supply & Control Voltage Regulator
  • TMI8122-Q1 - 1CH H-bridge Motor Driver
  • TMI8262 - Dual-Bridge Motor Controller
  • TMI8262Q - Dual-Bridge Motor Controller
  • TMI8870 - 3.6-A Brushed DC Motor Driver
  • TMI8870B - 3.6-A Brushed DC Motor Driver

Full PDF Text Transcription

Click to expand full text

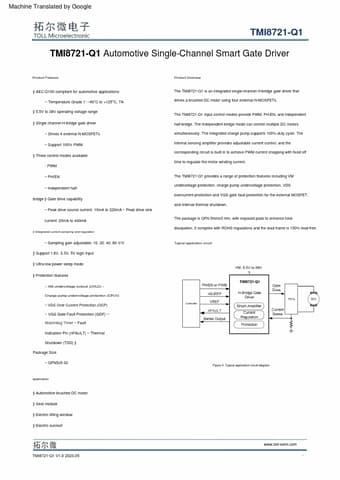

Machine Translated by Google TMI8721-Q1 TMI8721-Q1 Automotive Single-Channel Smart Gate Driver Product Features ÿ AEC-Q100 compliant for automotive applications: – Temperature Grade 1: –40°C to +125°C, TA ÿ 5.5V to 38V operating voltage range ÿ Single channel H-bridge gate driver – Drives 4 external N-MOSFETs – Support 100% PWM ÿ Three control modes available - PWM – PH/EN – Independent halfbridge ÿ Gate drive capability – Peak drive source current: 10mA to 220mA – Peak drive sink current: 20mA to 440mA ÿ Integrated current sampling and regulation – Sampling gain adjustable: 10, 20, 40, 80 V/V ÿ Support 1.8V, 3.
