TPD050503S, TPD050503D Datasheet - TOPPOWER

TPD050503S 1W 3KVDCIsolated Twin Output DC/DC Converters

1W 3KVDCIsolated Twin Output DC/DC Converters The TPD series are miniature, isolated 1W DC/DC-converters with twin output voltage in a SIP and DIP package. They offer the ideal solution in many space critical applications for board level power distribution. The internal SMD construction makes it po.

TPD050503S Features

* RoHS compliant、CE certification Twin independent output Input/output isolation 3KVDC Output/output isolation 3KVDC UL 94V-0 package material Power sharing on output Footprint from 1.17cm2 Efficiency to 80% Input voltage: 5V, 12V, 24V Output one: 5V,9V,12V,15V Output two: 3.3V, 5V, 9V, 12V, 1

TPD050503D-TOPPOWER.pdf

This datasheet PDF includes multiple part numbers: TPD050503S, TPD050503D. Please refer to the document for exact specifications by model.

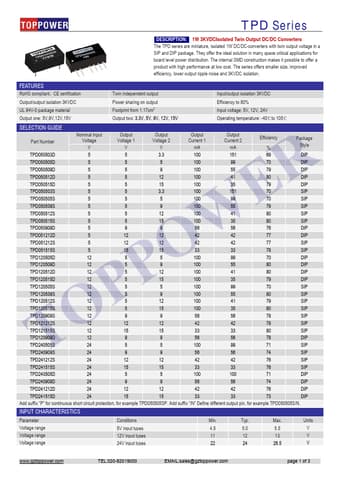

TPD050503S Datasheet Preview Page 2 TPD050503S Datasheet Preview Page 3

Datasheet Details

Part number:

TPD050503S, TPD050503D

Manufacturer:

TOPPOWER

File Size:

593.45 KB

Description:

1w 3kvdcisolated twin output dc/dc converters.

Note:

This datasheet PDF includes multiple part numbers: TPD050503S, TPD050503D.
Please refer to the document for exact specifications by model.
