TPD050503S-W5, TPD050503D-W5 Datasheet - TOPPOWER

TPD050503S-W5 0.5W 3KVDC Isolated Twin Output DC/DC Converters

0.5W 3KVDC Isolated Twin Output DC/DC Converters The TPD-W5 series are miniature, isolated 0.5W DC/DC-converters with twin output voltage in a SIP and DIP package. They offer the ideal solution in many space critical applications for board level power distribution. The internal SMD construction mak.

TPD050503S-W5 Features

* RoHS compliant、CE certification Twin independent output Input/output isolation 3KVDC Output/output isolation 3KVDC Power sharing on output Efficiency up to 80% UL 94V-0 package material Footprint from 1.17cm2 Input voltage: 5V, 12V Output one: 5V (12V selectable) Output two: 3.3V, 5V, 9V,

TPD050503D-W5-TOPPOWER.pdf

This datasheet PDF includes multiple part numbers: TPD050503S-W5, TPD050503D-W5. Please refer to the document for exact specifications by model.

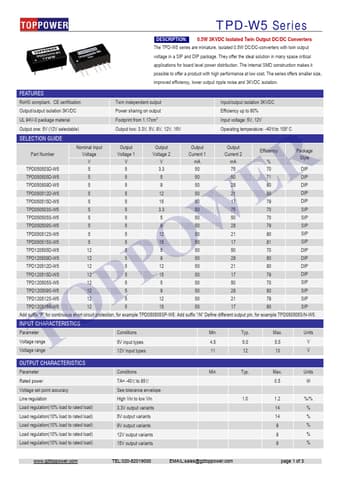

TPD050503S-W5 Datasheet Preview Page 2 TPD050503S-W5 Datasheet Preview Page 3

Datasheet Details

Part number:

TPD050503S-W5, TPD050503D-W5

Manufacturer:

TOPPOWER

File Size:

626.98 KB

Description:

0.5w 3kvdc isolated twin output dc/dc converters.

Note:

This datasheet PDF includes multiple part numbers: TPD050503S-W5, TPD050503D-W5.
Please refer to the document for exact specifications by model.
