TPLE0303S, TPLE0303D Datasheet - TOPPOWER

TPLE0303S 0.25W 1.5KVDC Isolated Single Output DC/DC Converters

0.25W 1.5KVDC Isolated Single Output DC/DC Converters The TPLE series are miniature, isolated low power and high efficiency DC/DC converters in a SIP and DIP package. They offer the ideal solution in many space critical applications for board level power distribution. The Internal SMD construction .

TPLE0303S Features

* RoHS compliant、CE certification Single output rail 1.5KVDC isolation High efficiency for low power applications SIP & DIP package styles Power density 0.36W/cm3 UL 94V-0 package material Footprint from 0.69cm2 Input voltage: 3.3V, 5V,12V,24V Output voltage: 3.3V, 5V, 9V, 12V ,15V Custom s

TPLE0303D-TOPPOWER.pdf

This datasheet PDF includes multiple part numbers: TPLE0303S, TPLE0303D. Please refer to the document for exact specifications by model.

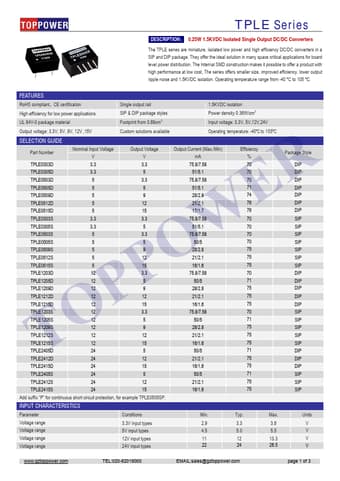

TPLE0303S Datasheet Preview Page 2 TPLE0303S Datasheet Preview Page 3

Datasheet Details

Part number:

TPLE0303S, TPLE0303D

Manufacturer:

TOPPOWER

File Size:

586.19 KB

Description:

0.25w 1.5kvdc isolated single output dc/dc converters.

Note:

This datasheet PDF includes multiple part numbers: TPLE0303S, TPLE0303D.
Please refer to the document for exact specifications by model.
