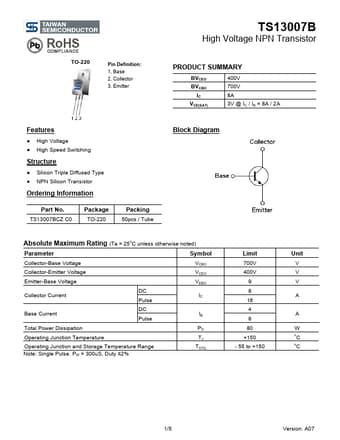

    TS13007B High Voltage NPN Transistor TO-220 Pin Definition: 1. Base 2. Collector 3. Emitter PRODUCT SUMMARY BVCEO BVCBO IC VCE(SAT) 400V 700V 8A 3V @ IC / IB = 8A / 2A Features ● ● High Voltage High Speed Switching Block Diagram Structure ● ● Silicon Triple Diffused Type NPN Silicon Transistor Ordering Information Part No. TS13007BCZ C0 Package TO-220 Packing 50pcs / Tube http://www.DataSheet4U.net/ Absolute Maximum Rating (Ta = 25oC unless otherwise noted) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Total Power Dissipation Operating Junction Temperature Operating Junction and Storage Temperature Range Note: Single Pulse.
