2N3867SMD05 - PNP SWITCHING SILICON TRANSISTOR

2N3867SMD05 Description

PNP SWITCHING SILICON TRANSISTOR 2N3867SMD05 * High Voltage * Hermetic Ceramic Surface Mount Package * Ideally suited for Pow.

2N3867SMD05 Applications

* Screening Options Available ABSOLUTE MAXIMUM RATINGS (TC = 25°C unless otherwise stated) VCBO Collector
* Base Voltage 40V VCEO Collector
* Emitter Voltage 40V VEBO Emitter
* Base Voltage 4V IC Continuous Collector Current 3A IB Base Current 0.5A PD

📥 Download Datasheet

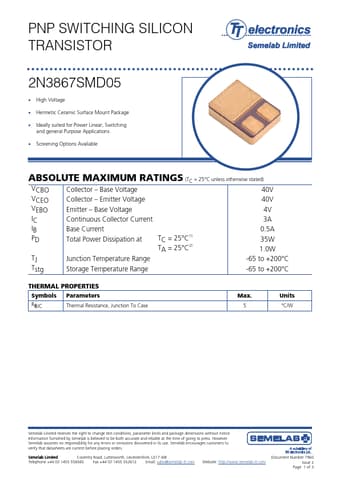

Preview of 2N3867SMD05 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N3867SMD05
Manufacturer
TT
File Size
337.75 KB
Datasheet
2N3867SMD05-TT.pdf
Description
PNP SWITCHING SILICON TRANSISTOR
