SWDC0603 SMD Power Inductors

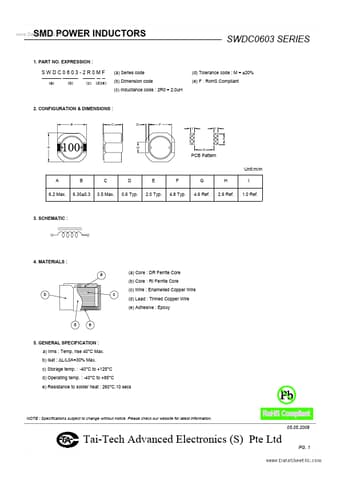

www.DataSheet4U.com SMD POWER INDUCTORS 1. PART NO. EXPRESSION : SWDC0603 SERIES SWDC0603-2R0MF (a) (b) (c) (d)(e) (a) Series code (b) Dimension code (c) Inductance code : 2R0 = 2.0uH (d) Tolerance code : M = ±20% (e) F : RoHS Compliant 2. CONFIGURATION & DIMENSIONS : B C D F I I H 100 A B 6.30±0.3 C 3.5 Max. D A E G PCB Pattern Unit:m/m E 2.0 Typ. F 4.8 Typ. G 4.6 Ref. H 2.6 Ref. I 1.0 Ref. 6.2 Max. 0.6 Typ. 3. SCHEMATIC : 4. MATERIALS : a (a) Core : DR Ferrite Core (b) Core .
