SWD100N03 N-Channel MOSFET

SWD100N03 Description

www.DataSheet.co.kr SAMWIN SW100N03 N-channel MOSFET .
This N-channel enhancement mode field-effect power transistor using SAMWIN semiconductor’s advanced planar stripe, DMOS technology intended for batter.

SWD100N03 Features

* High ruggedness
* RDS(ON) (Max 5.3mΩ)@VGS=10V
* Gate Charge (Typ 146nC)
* Improved dv/dt Capability
* 100% Avalanche Tested 1 TO-220 TO-251 TO-252 TO-263 BVDSS : 30V ID : 100A RDS(ON) : 5.3 mΩ 1 2 3 2 3 1 2 1 3 2 2 3 1 3 1. Gate 2. Drain 3. Source General Descripti

📥 Download Datasheet

Preview of SWD100N03 PDF

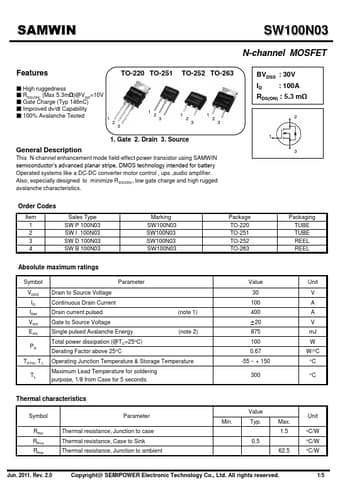

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SWD100N03
Manufacturer
Samwin
File Size
601.10 KB
Datasheet
SWD100N03_Samwin.pdf
Description
N-Channel MOSFET
