SWD-119 Single Driver

Tyco Electronics

Description

www.DataSheet4U.com Quad Driver for GaAs FET Switches and Attenuators .
The SWD-119 is a quad channel driver used to translate TTL control inputs into gate control voltages for GaAs FET microwave switches and attenuators.

📥 Download Datasheet

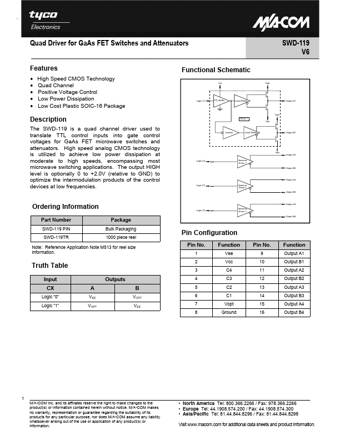

SWD-119 Datasheet Preview — Preview of SWD-119 PDF

Datasheet Specifications

Part number: SWD-119
Manufacturer: Tyco Electronics
File Size: 177.21 KB
Datasheet: SWD-119_TycoElectronics.pdf
Description: Single Driver

Applications

* The output HIGH level is optionally 0 to +2.0V (relative to GND) to optimize the intermodulation products of the control devices at low frequencies. Inverter Vopt Driver 1 Vee Level Shifter Output B1 Vee Output A2 Logic C2 Same as Driver 1 Output B2 Output A3 Logic C3 Same as Driver 1 Output B
