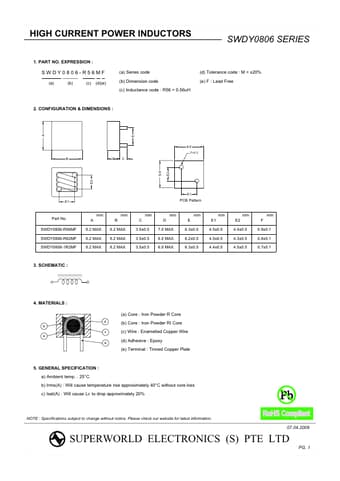

SWDY0806-1R2MF, SWDY0806, HIGH CURRENT POWER INDUCTORS

www.DataSheet.co.kr HIGH CURRENT POWER INDUCTORS 1.

PART NO.

EXPRESSION : SWDY0806 SERIES SWDY0806-R56MF (a) (b) (c) (d)(e) (a) Series code (b) Dimension code (c) Inductance code : R56 = 0.56uH (d) Tolerance code : M = ±20% (e) F : Lead Free 2.

CONFIGURATION & DIMENSIONS : A E 9.0 F+0.3 B D C 9.0 E2 E2 E1 E1 PCB Pattern Part No.

SWDY0806-R56MF SWDY0806-R82MF SWDY0806-1R2MF mm A 8.2 MAX.

8.2 MAX.

8.2 MAX.

B mm C 8.2 MAX.

8.2 MAX.

8.2 MAX.

mm D 3.5±0.5 3.5±0.5 3.5±0.5 mm E 7.0
