SWDY0806-R80MF-NC HIGH CURRENT POWER INDUCTORS

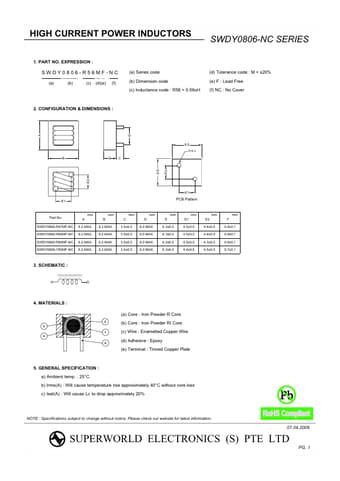

www.DataSheet.co.kr HIGH CURRENT POWER INDUCTORS 1. PART NO. EXPRESSION : SWDY0806-NC SERIES SWDY0806-R56MF-NC (a) (b) (c) (d)(e) (f) (a) Series code (b) Dimension code (c) Inductance code : R56 = 0.56uH (d) Tolerance code : M = ±20% (e) F : Lead Free (f) NC : No Cover 2. CONFIGURATION & DIMENSIONS : A E 9.0 F+0.3 B D C 9.0 E2 E2 E1 E1 PCB Pattern Part No. SWDY0806-R47MF-NC SWDY0806-R60MF-NC SWDY0806-R80MF-NC SWDY0806-1R0MF-NC mm A 8.2 MAX. 8.2 MAX. 8.2 MAX. 8.2 MAX. B mm C 8..

SWDY0806-NC_Superworld.pdf

This datasheet PDF includes multiple part numbers: SWDY0806-R80MF-NC, SWDY0806-NC. Please refer to the document for exact specifications by model.
SWDY0806-R80MF-NC Datasheet Preview Page 2 SWDY0806-R80MF-NC Datasheet Preview Page 3

Datasheet Details

Part number:

SWDY0806-R80MF-NC, SWDY0806-NC

Manufacturer:

Superworld

File Size:

201.94 KB

Description:

High current power inductors.

Note:

This datasheet PDF includes multiple part numbers: SWDY0806-R80MF-NC, SWDY0806-NC.
Please refer to the document for exact specifications by model.
