SWDY0806-R82MF HIGH CURRENT POWER INDUCTORS

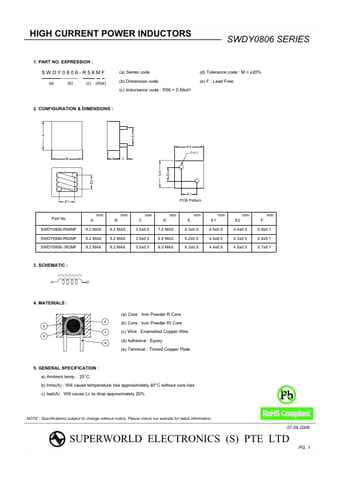

www.DataSheet.co.kr HIGH CURRENT POWER INDUCTORS 1. PART NO. EXPRESSION : SWDY0806 SERIES SWDY0806-R56MF (a) (b) (c) (d)(e) (a) Series code (b) Dimension code (c) Inductance code : R56 = 0.56uH (d) Tolerance code : M = ±20% (e) F : Lead Free 2. CONFIGURATION & DIMENSIONS : A E 9.0 F+0.3 B D C 9.0 E2 E2 E1 E1 PCB Pattern Part No. SWDY0806-R56MF SWDY0806-R82MF SWDY0806-1R2MF mm A 8.2 MAX. 8.2 MAX. 8.2 MAX. B mm C 8.2 MAX. 8.2 MAX. 8.2 MAX. mm D 3.5±0.5 3.5±0.5 3.5±0.5 mm E 7.0.

SWDY0806_Superworld.pdf

This datasheet PDF includes multiple part numbers: SWDY0806-R82MF, SWDY0806. Please refer to the document for exact specifications by model.
