RS2GA, RS2AA Surface Mount Fast Recovery Rectifiers

RS2GA Description

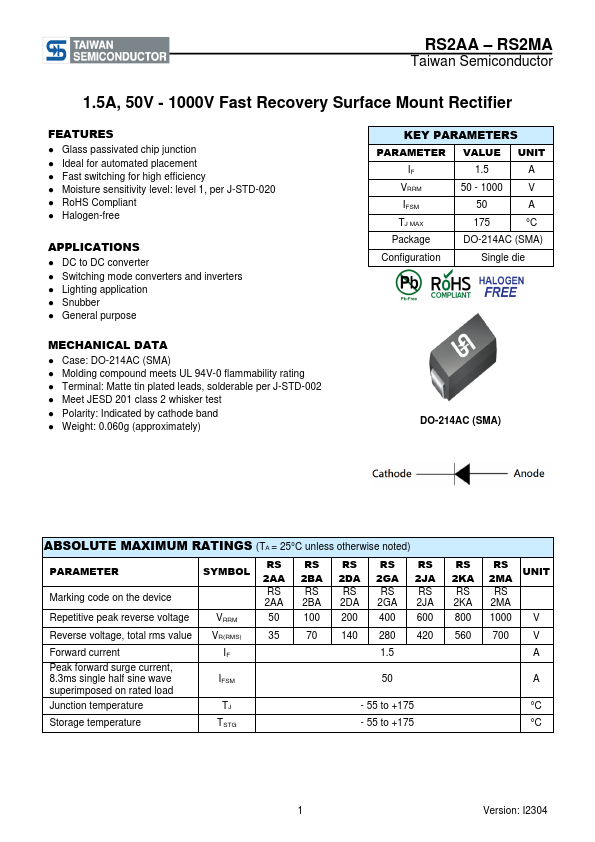

RS2AA * RS2MA Taiwan Semiconductor 1.5A, 50V - 1000V Fast Recovery Surface Mount Rectifier .
only.

RS2GA Features

* Glass passivated chip junction
* Ideal for automated placement
* Fast switching for high efficiency
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS Compliant

RS2GA Applications

* DC to DC converter
* Switching mode converters and inverters
* Lighting application
* Snubber
* General purpose KEY PARAMETERS PARAMETER VALUE UNIT IF 1.5 A VRRM 50 - 1000 V IFSM 50 A TJ MAX 175 °C Package DO-214AC (SMA) Configuration Single die MECHANICAL DAT

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS2GA, RS2AA. Please refer to the document for exact specifications by model.

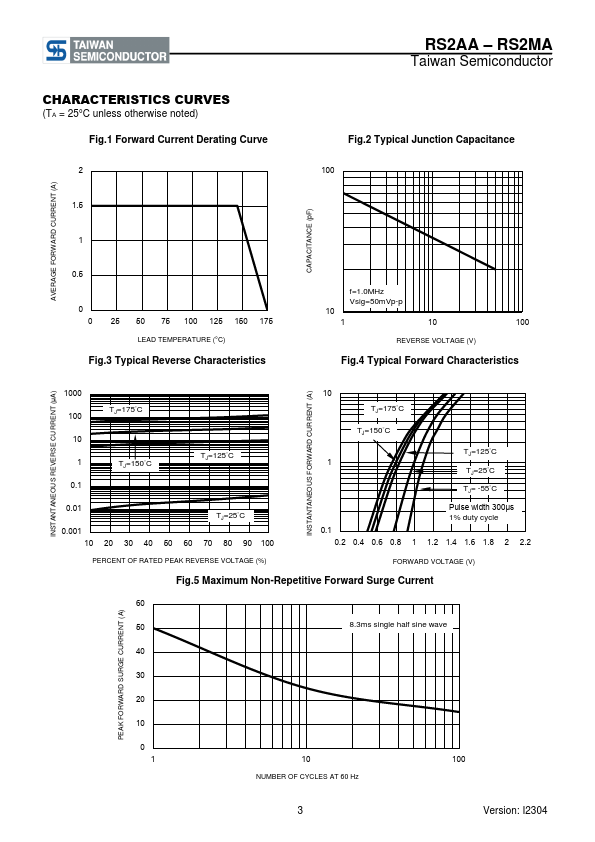

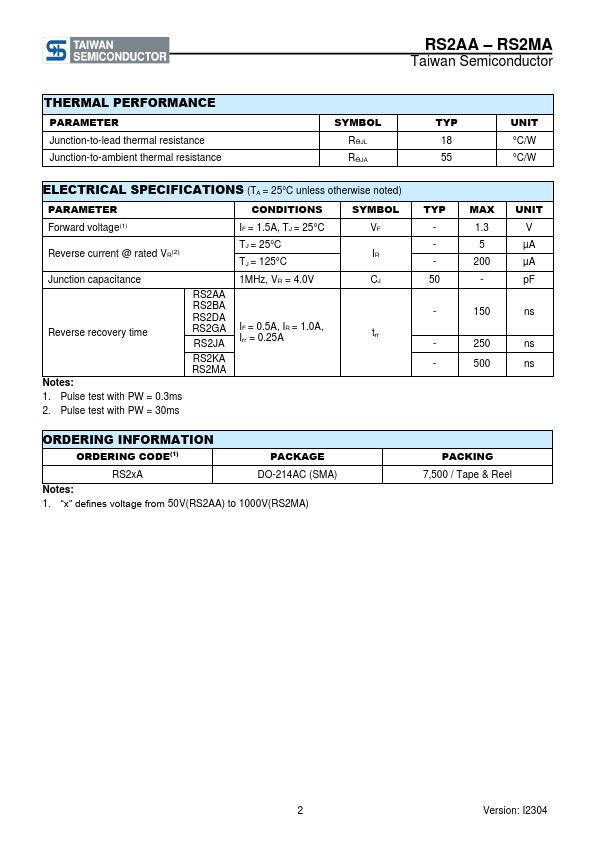

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS2GA, RS2AA
Manufacturer
Taiwan Semiconductor
File Size
365.36 KB
Datasheet
RS2AA-TaiwanSemiconductor.pdf
Description
Surface Mount Fast Recovery Rectifiers
Note
This datasheet PDF includes multiple part numbers: RS2GA, RS2AA.
Please refer to the document for exact specifications by model.
