TSM340N06 Datasheet - Taiwan Semiconductor

TSM340N06 N-Channel Power MOSFET

only. No license, express or implied, to any intellectual property rights is granted by this document. Except as provided in TSC’s terms and conditions of sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of TSC pr.
TO-220 TO-251S (IPAK) TSM340N06 60V N-Channel Power MOSFET ITO-220 TO-252 (DPAK) Pin Definition: 1. Gate 2. Drain 3. Source Key Parameter Performance Parameter Value VDS RDS(on) (max) VGS = 10V VGS = 4.5V 60 34 40 Qg 16.6 Unit V mΩ nC Ordering Information Part No. Package Packing TSM340N06CI C0G ITO-220 50pcs / Tube TSM340N06CZ C0G TO-220 50pcs / Tube TSM340N06CH X0G TO-251S 75pcs / Tube TSM340N06CP ROG TO-252 2.5kpcs / 13” Reel Note: “G” denotes for Halogen- and Antimo.

TSM340N06 Datasheet (961.28 KB)

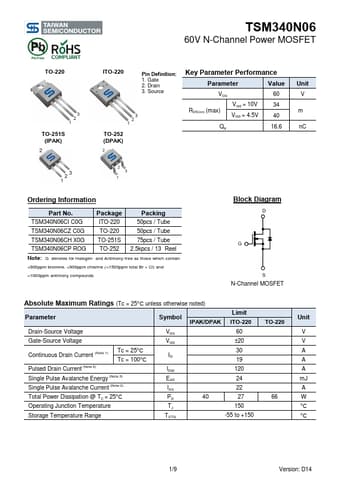

Preview of TSM340N06 PDF
TSM340N06 Datasheet Preview Page 2 TSM340N06 Datasheet Preview Page 3

Datasheet Details

Part number:

TSM340N06

Manufacturer:

Taiwan Semiconductor

File Size:

961.28 KB

Description:

N-channel power mosfet.
