TSS0230U

Surface Mount Schottky Barrier Diode

TSS0230U Features

* - Designed for mounting on small surface - Extremely thin/leadless package - Low capacitance - Low forward voltage drop - Packing code with suffix "G" means green compound (halogen-free) TSS0230U Taiwan Semiconductor MECHANICAL DATA - Case: 0603 - Molding compound, UL flammability classification r

TSS0230U General Description

Multiple manufacture source Green compound Define manufacture source Green compound DIM. L W T C D Unit (mm) Min Typ. Max 1.60 - 1.80 0.80 - 1.00 0.70 - 0.85 - 0.45 - - 0.70 - Min 0.063 0.031 0.028 - Unit (inch) Typ. - 0.018 0.028 Max 0.071 0.039 0.033 - Document Number: DS_S1411005 Ve.

TSS0230U Datasheet (193.07 KB)

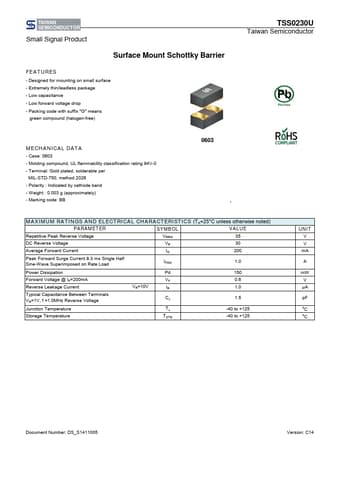

Preview of TSS0230U PDF

Datasheet Details

Part number:

TSS0230U

Manufacturer:

Taiwan Semiconductor

File Size:

193.07 KB

Description:

Surface mount schottky barrier diode.
