TD5860 Source and Sink 1.5A/2A Fast Transient Response Line Regulator

TD5860 Description

T  echcode® DATASHEET     Source and Sink 1.5A/2A Fast Transient Response Line Regulator TD5860(A)   General .
Features    The TD5860/TD5860A linear regulator is designed to provide a regulated voltage with bi-direction output current for DDRSDRAM terminatio.

TD5860 Features

*   The TD5860/TD5860A linear regulator is designed to provide a regulated voltage with bi-direction output current for DDRSDRAM termination voltage. The TD5860 integrates two power transistors to source or sink load current up to 1.5A/2A. It also features internal soft-start, current-limit, thermal

TD5860 Applications

* z DDRII/III SDRAM Termination Voltage z Motherboard and VGA Card Power Supplies z Setop Box z SSTL-2/3 Termination Voltage Package Types            Figure 1. Package Types of TD6821  Figure 1    Package Types of TD5860/TD5860A     December,  20,  2005.

📥 Download Datasheet

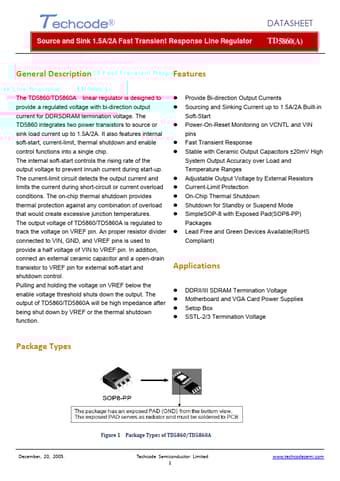

Preview of TD5860 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TD5860
Manufacturer
Techcode
File Size
637.04 KB
Datasheet
TD5860-Techcode.pdf
Description
Source and Sink 1.5A/2A Fast Transient Response Line Regulator
