DB107S - 1.0 Ampere Surface Mount Glass Passivated Bridge Rectifier

Product Overview

Thinki Semiconductor

Part number	DB107S
Manufacturer	Thinki Semiconductor
File Size	643.99 KB
Description	1.0 Ampere Surface Mount Glass Passivated Bridge Rectifier
Datasheet	DB107S Datasheet
Note	This datasheet PDF includes multiple part numbers: DB107S, DB101S. Please refer to the document for exact specifications by model.

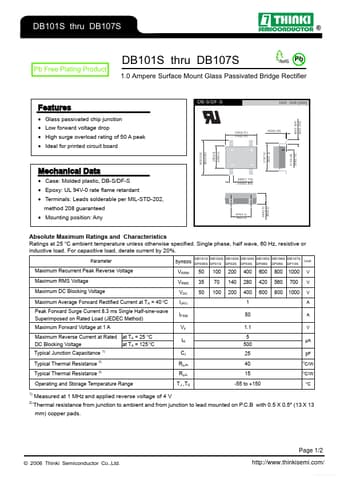

Additional preview pages of the DB107S datasheet.

Glass passivated chip junction.
Low forward voltage drop.
High surge overload rating of 50 A peak.
Ideal for printed circuit board DB-S/DF-S Unit : inch (mm) .060(1.524) .004(0.10) .011(0.28) .335(8.51) .316(8.05) .009(0.25) .255(6.5) .245(6.2) .410(10.4) .360(9.40) Mechanical Data.
Case: Molded plastic, DB-S/DF-S.
Epoxy: UL 94V-0 rate flame retardant.
Terminals: Leads solderable per MIL-STD-202,.
Mounting positio.
