MJ21193G Datasheet - Thinki Semiconductor

MJ21193G Metal Package Power Transistor

MJ21193G/MJ21194G ® Pb Free Plating Product MJ21193G/MJ21194G Pb 250 Watt Silicon Type Metal Package Power Transistor The MJ21193 and MJ21194 utilize Perforated Emitter technology and are specifically designed for high power audio output, disk head positioners and linear applications. Total Harmonic Distortion Characterized High DC Current Gain hFE = 25 Min @ IC = 8 Adc Excellent Gain Linearity High SOA: 2.5 A, 80 V, 1 Second SCHEMATIC P.

MJ21193G-ThinkiSemiconductor.pdf

Preview of MJ21193G PDF

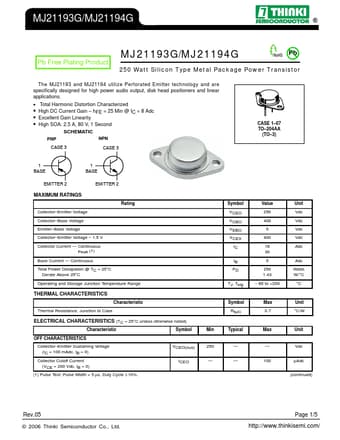

MJ21193G Datasheet Preview Page 2 MJ21193G Datasheet Preview Page 3

Datasheet Details

Part number:

MJ21193G

Manufacturer:

Thinki Semiconductor

File Size:

565.13 KB

Description:

Metal package power transistor.
