MJ21194

NPN Transistor

MJ21194 General Description


*Excellent Safe Operating Area
*DC Current Gain- : hFE= 25-75@IC = 8A,VCE= 5V
*Collector-Emitter Saturation Voltage- : VCE(sat)= 1.4 V(Max)@ IC = 8A
*Complement to the PNP MJ21193
*Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS

MJ21194 Datasheet (203.09 KB)

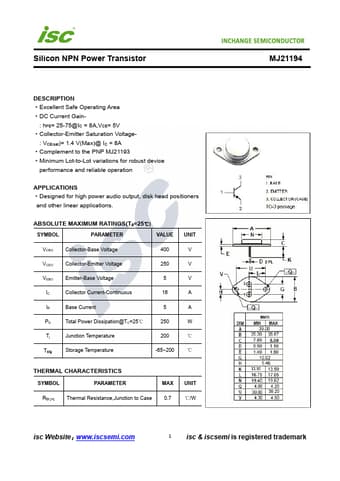

Preview of MJ21194 PDF

Datasheet Details

Part number:

MJ21194

Manufacturer:

INCHANGE

File Size:

203.09 KB

Description:

Npn transistor.
