MJ21194G, MJ21193G - Metal Package Power Transistor

MJ21194G Description

MJ21193G/MJ21194G ® Pb Free Plating Product MJ21193G/MJ21194G Pb 250 Watt Silicon Type Metal Package Power Transistor The MJ21193 and MJ21194 ut.

MJ21194G Applications

* Total Harmonic Distortion Characterized
* High DC Current Gain
* hFE = 25 Min @ IC = 8 Adc
* Excellent Gain Linearity
* High SOA: 2.5 A, 80 V, 1 Second SCHEMATIC PNP NPN CASE 3 CASE 3 CASE 1
* 07 TO
* 204AA (TO
* 3) 1 BASE 1 BASE

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MJ21194G, MJ21193G. Please refer to the document for exact specifications by model.

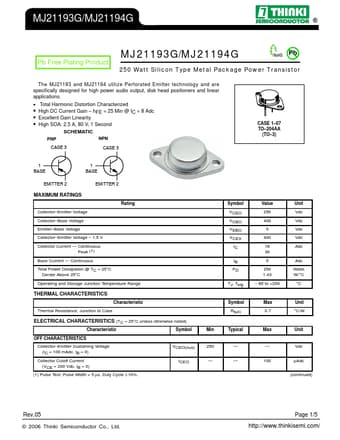

datasheet Preview Page 2 datasheet Preview Page 3
