XC62KN3002, XC62K Datasheet - Torex Semiconductor

XC62KN3002 Negative Voltage Regulators

The XC62K series are highly precise, low power consumption, negative voltage regulators, manufactured using CMOS and laser trimming technologies. The series achieves high output currents with small input-output voltage differentials, and consists of a high precision voltage reference, an error corre.

XC62KN3002 Features

* Dropout Voltage : 0.12V@50mA (VOUT=-5.0V) : 0.38V＠100mA Maximum Output Current : 100mA (within MAX. power dissipation, VOUT= -5.0V) Output Voltage Range : -2.1V ~ -6.0V (0.1V increments) -5.0, -4.0, -3.0V, -2.5V standard (All other voltages are semi-custom) Highly Accurate : Setting output

XC62K_TorexSemiconductor.pdf

This datasheet PDF includes multiple part numbers: XC62KN3002, XC62K. Please refer to the document for exact specifications by model.

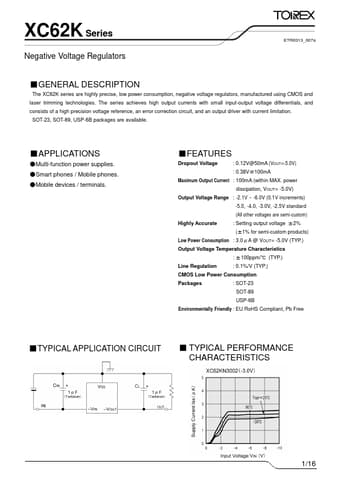

XC62KN3002 Datasheet Preview Page 2 XC62KN3002 Datasheet Preview Page 3

Datasheet Details

Part number:

XC62KN3002, XC62K

Manufacturer:

Torex Semiconductor

File Size:

2.72 MB

Description:

Negative voltage regulators.

Note:

This datasheet PDF includes multiple part numbers: XC62KN3002, XC62K.
Please refer to the document for exact specifications by model.
