XC62KN4002 Datasheet - Torex Semiconductor

Negative Voltage Regulators

XC62KN4002 Features

* Dropout Voltage : 0.12V@50mA (VOUT=-5.0V) : 0.38V＠100mA Maximum Output Current : 100mA (within MAX. power dissipation, VOUT= -5.0V) Output Voltage Range : -2.1V ~ -6.0V (0.1V increments) -5.0, -4.0, -3.0V, -2.5V standard (All other voltages are semi-custom) Highly Accurate : Setting output

XC62KN4002 General Description

The XC62K series are highly precise, low power consumption, negative voltage regulators, manufactured using CMOS and laser trimming technologies. The series achieves high output currents with small input-output voltage differentials, and consists of a high precision voltage reference, an error corre.

XC62KN4002 Datasheet (2.72 MB)

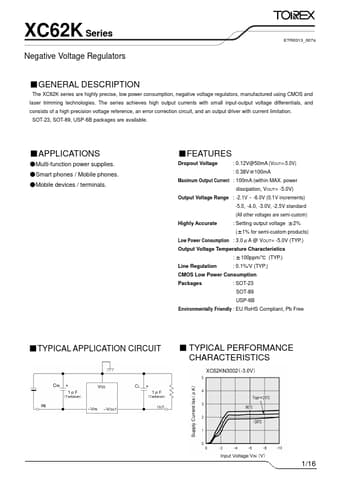

Preview of XC62KN4002 PDF

Datasheet Details

Part number:

XC62KN4002

Manufacturer:

Torex Semiconductor

File Size:

2.72 MB

Description:

Negative voltage regulators.
