XC62KN5002 - Negative Voltage Regulators

This page provides the datasheet information for the XC62KN5002, a member of the XC62K Negative Voltage Regulators family.

Datasheet Summary

Description

The XC62K series are highly precise, low power consumption, negative voltage regulators, manufactured using CMOS and laser trimming technologies.

Features

Dropout Voltage : 0.12V@50mA (VOUT=-5.0V) : 0.38V＠100mA Maximum Output Current : 100mA (within MAX. power dissipation, VOUT= -5.0V) Output Voltage Range : -2.1V ~ -6.0V (0.1V increments) -5.0, -4.0, -3.0V, -2.5V standard (All other voltages are semi-custom) Highly Accurate : Setting output voltage ±2% (±1% for semi-custom products) Low Power Consumption : 3.0μA @ VOUT= -5.0V (TYP. ) Output Voltage Temperature Characteristics : ±100ppm/℃ (TYP. ) Line Regulation : 0.1%/V (TYP. ) CMOS.

Datasheet Details

Part number	XC62KN5002
Manufacturer	Torex Semiconductor
File Size	2.72 MB
Description	Negative Voltage Regulators
Datasheet	XC62KN5002 Datasheet
Additional preview pages of the XC62KN5002 datasheet.

📁 Similar Datasheet

XC62KN - Negative Voltage Regulators (Torex)

XC62K - Negative Voltage Regulators (Torex)

XC6206 - 100mA Low Dropout CMOS Voltage Regulators (JinYu)

XC6206 - Linear voltage regulator (UMW)

XC6211 - 300mA High Speed LDO Regulators (Torex)

XC6218 - Low Power Supply LDO Regulators (TOREX)

XC6238 - 300mA High Speed LDO Regulator (Torex)

XC6240 - Rechargeable Batteries Charging (Torex)

XC6241 - High Speed Voltage Regulators (Torex)

XC6242 - Charging IC (Torex)

Full PDF Text Transcription

Click to expand full text

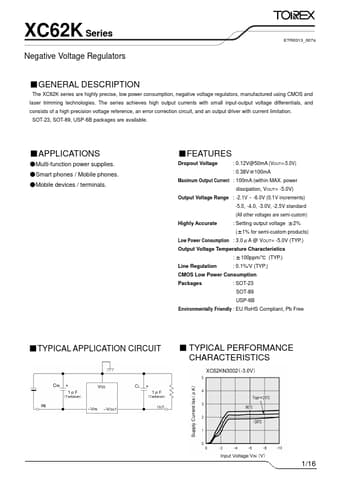

XC62K Series Negative Voltage Regulators ETR0313_007a ■GENERAL DESCRIPTION The XC62K series are highly precise, low power consumption, negative voltage regulators, manufactured using CMOS and laser trimming technologies. The series achieves high output currents with small input-output voltage differentials, and consists of a high precision voltage reference, an error correction circuit, and an output driver with current limitation. SOT-23, SOT-89, USP-6B packages are available. ■APPLICATIONS ●Multi-function power supplies. ●Smart phones / Mobile phones. ●Mobile devices / terminals. ■FEATURES Dropout Voltage : 0.12V@50mA (VOUT=-5.0V) : 0.38V＠100mA Maximum Output Current : 100mA (within MAX. power dissipation, VOUT= -5.0V) Output Voltage Range : -2.1V ~ -6.0V (0.1V increments) -5.
