XP131A0616SR

Power MOS FET

XP131A0616SR Features

* Low on-state resistance: Rds(on)=0.016Ω(Vgs=4.5V) Rds(on)=0.022Ω(Vgs=2.5V) Rds(on)=0.045Ω(Vgs=1.5V) Ultra high-speed switching Operational Voltage: 1.5V High density mounting: SOP-8 Pin Configuration S1 S2 S3 G4 SOP-8 (TOP VIEW) 8D 7D 6D 5D Equivalent Circuit 18 27 36 45 N-Channel MOS FET (1 de

XP131A0616SR Datasheet (60.99 KB)

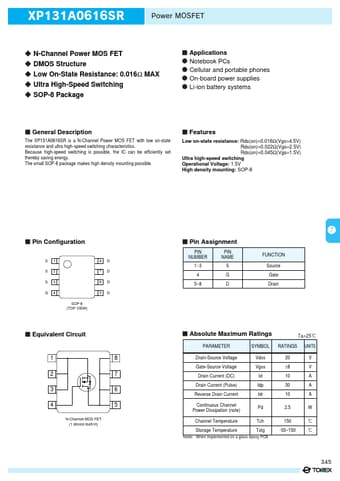

Preview of XP131A0616SR PDF

Datasheet Details

Part number:

XP131A0616SR

Manufacturer:

Torex Semiconductor

File Size:

60.99 KB

Description:

Power mos fet.
N-Channel Power MOS FET DMOS Structure Low On-State Resistance: 0.016Ω MAX Ultra High-Speed Switching SOP-8 Package Applications Notebook PCs Cellula.
