XP131A1330SR

Power MOSFET

XP131A1330SR Features

* Low On-State Resistance: Rds(on)=0.03 (Vgs=4.5V) : Rds(on)=0.04 (Vgs=2.5V) : Rds(on)=0.07 (Vgs=1.5V) Ultra High-Speed Switching Driving Voltage : 1.5V N-Channel Power MOSFET DMOS Structure Package : SOP-8 PIN CONFIGURATION PIN ASSIGNMENT PIN NUMBER 1~3 4 5~8 PIN NAME S G D FUNCTION So

XP131A1330SR General Description

The XP131A1330SR is an N-channel Power MOSFET with low on-state resistance and ultra high-speed switching characteristics Because high-speed switching is possible, the IC can be efficiently set thereby saving energy. The small SOP-8 package makes high density mounting possible. APPLICATIONS Noteboo.

XP131A1330SR Datasheet (294.02 KB)

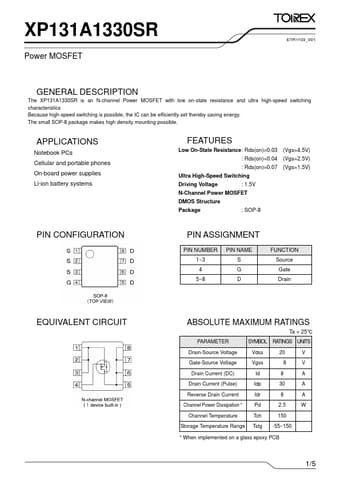

Preview of XP131A1330SR PDF

Datasheet Details

Part number:

XP131A1330SR

Manufacturer:

Torex Semiconductor

File Size:

294.02 KB

Description:

Power mosfet.
