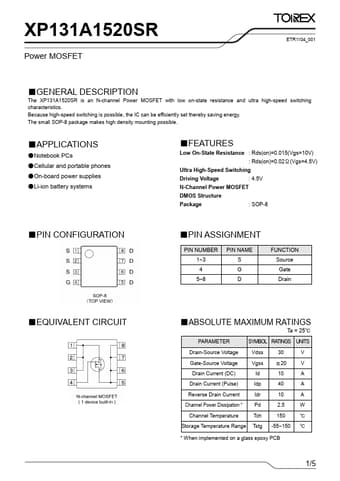

XP131A1520SR Datasheet - Torex Semiconductor

XP131A1520SR Power MOSFET

The XP131A1520SR is an N-channel Power MOSFET with low on-state resistance and ultra high-speed switching characteristics. Because high-speed switching is possible, the IC can be efficiently set thereby saving energy. The small SOP-8 package makes high density mounting possible. *APPLICATIONS <.

XP131A1520SR Features

* Low On-State Resistance : Rds(on)=0.015(Vgs=10V) : Rds(on)=0.02Ω(Vgs=4.5V) Ultra High-Speed Switching Driving Voltage : 4.5V N-Channel Power MOSFET DMOS Structure Package : SOP-8

* PIN CONFIGURATION

* PIN ASSIGNMENT PIN NUMBER 1~3 4 5~8 PIN NAME S G D FUNCTION Source Gate Drain
