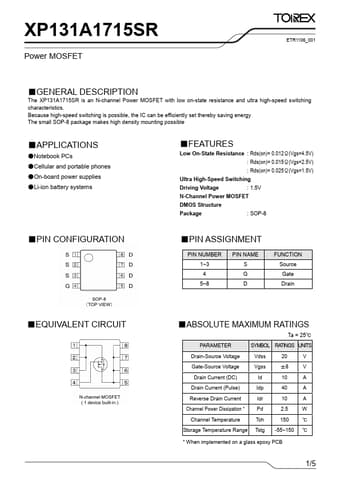

XP131A1715SR Power MOSFET

The XP131A1715SR is an N-channel Power MOSFET with low on-state resistance and ultra high-speed switching characteristics. Because high-speed switching is possible, the IC can be efficiently set thereby saving energy The small SOP-8 package makes high density mounting possible *APPLICATIONS

XP131A1715SR Features

* Low On-State Resistance : Rds(on)= 0.012Ω(Vgs=4.5V) : Rds(on)= 0.015Ω(Vgs=2.5V) : Rds(on)= 0.025Ω(Vgs=1.5V) Ultra High-Speed Switching Driving Voltage : 1.5V N-Channel Power MOSFET DMOS Structure Package : SOP-8

* PIN CONFIGURATION

* PIN ASSIGNMENT PIN NUMBER 1~3 4 5~8 PIN NAME S
