XP131A1617SR, Power MOSFET

XP131A1617SR Power MOSFET ETR1105_001 *GENERAL .
The XP131A1617SR is an N-channel Power MOSFET with low on-state resistance and ultra high-speed switching characteristics.

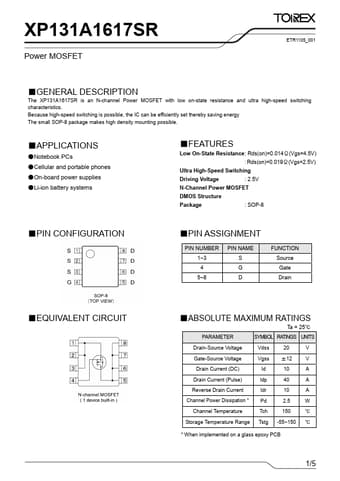

datasheet Preview Page 1 from Datasheet4u.com

XP131A1617SR-TorexSemiconductor.pdf

XP131A1617SR Datasheet Preview — Preview of XP131A1617SR PDF

Datasheet Details

Part number:

XP131A1617SR

Manufacturer:

Torex Semiconductor

File Size:

438.71 KB

Description:

Power MOSFET

Features

* Low On-State Resistance: Rds(on)=0.014Ω(Vgs=4.5V) : Rds(on)=0.019Ω(Vgs=2.5V) Ultra High-Speed Switching Driving Voltage : 2.5V N-Channel Power MOSFET DMOS Structure Package : SOP-8
* PIN CONFIGURATION
* PIN ASSIGNMENT PIN NUMBER 1~3 4 5~8 PIN NAME S G D FUNCTION Source Gate Drain

Applications

* Notebook PCs
* Cellular and portable phones
* On-board power supplies
* Li-ion battery systems
