Part number:
XP131A1235SR
Manufacturer:
Torex Semiconductor
File Size:
433.77 KB
Description:
Power mosfet.

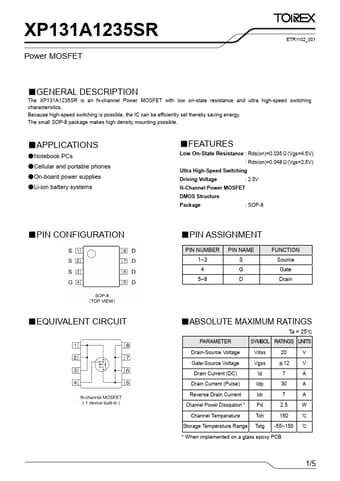

XP131A1235SR Datasheet (433.77 KB)
* Low On-State Resistance : Rds(on)=0.035Ω(Vgs=4.5V) : Rds(on)=0.048Ω(Vgs=2.5V) Ultra High-Speed Switching Driving Voltage : 2.5V N-Channel Power MOSFET DMOS Structure Package : SOP-8
* PIN CONFIGURATION
* PIN ASSIGNMENT PIN NUMBER 1~3 4 5~8 PIN NAME S G D FUNCTION Source Gate Drai
XP131A1235SR Datasheet (433.77 KB)
XP131A1235SR
Torex Semiconductor
433.77 KB
Power mosfet.
