XP1334GEU, N-CHANNEL ENHANCEMENT MODE POWER MOSFET

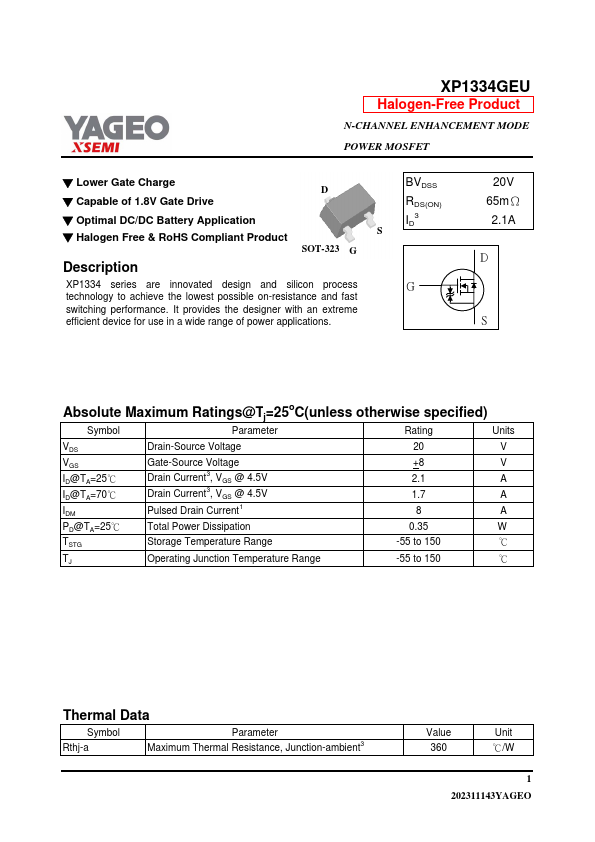

XP1334GEU Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Lower Gate Charge D ▼ Capable of 1.8V Gate Drive ▼ Optimal DC/DC Battery Ap.
XP1334 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

datasheet Preview Page 1 from Datasheet4u.com

XP1334GEU-YAGEO.pdf

XP1334GEU Datasheet Preview — Preview of XP1334GEU PDF

Datasheet Details

Part number:

XP1334GEU

Manufacturer:

YAGEO

File Size:

162.40 KB

Description:

N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* BVDSS RDS(ON) ID3 G 20V 65mΩ 2.1A D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TSTG TJ Drain-Source Voltage Gate-Source Voltage Drain Current3, VGS @ 4.5V Drain Current3, VGS @ 4.5V Pulsed Drain Cur
