XP133A1235SR

Power MOSFET

XP133A1235SR Datasheet (439.14 KB)

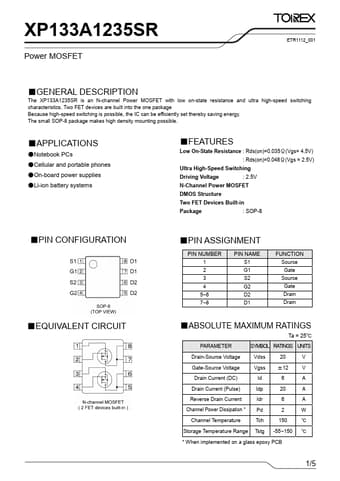

Preview of XP133A1235SR PDF

Datasheet Details

Part number:

XP133A1235SR

Manufacturer:

Torex Semiconductor

File Size:

439.14 KB

Description:

Power mosfet.

XP133A1235SR Features

* Low On-State Resistance : Rds(on)=0.035Ω(Vgs= 4.5V) : Rds(on)=0.048Ω(Vgs = 2.5V) Ultra High-Speed Switching Driving Voltage : 2.5V N-Channel Power MOSFET DMOS Structure Two FET Devices Built-in Package : SOP-8

* PIN CONFIGURATION

* EQUIVALENT CIRCUIT

* PIN ASSIGNMENT PIN NUMBER

XP133A1235SR General Description

The XP133A1235SR is an N-channel Power MOSFET with low on-state resistance and ultra high-speed switching characteristics. Two FET devices are built into the one package Because high-speed switching is possible, the IC can be efficiently set thereby saving energy. The small SOP-8 package makes high .
