XP133A1145SR

Power MOSFET

XP133A1145SR Features

* Low On-State Resistance : Rds(on)=0.033Ω(Vgs=10V) : Rds(on)=0.045Ω(Vgs=4.5V) Ultra High-Speed Switching Driving Voltage : 4.5V N-Channel Power MOSFET DMOS Structure Two FET Devices Built-in Package : SOP-8

* PIN CONFIGURATION

* EQUIVALENT CIRCUIT

* PIN ASSIGNMENT PIN NUMBER 1 2

XP133A1145SR General Description

The XP133A1145SR is an N-channel Power MOSFET with low on-state resistance and ultra high-speed switching characteristics. Two FET devices are built into the one package. Because high-speed switching is possible, the IC can be efficiently set thereby saving energy. The small SOP-8 package makes high.

XP133A1145SR Datasheet (424.96 KB)

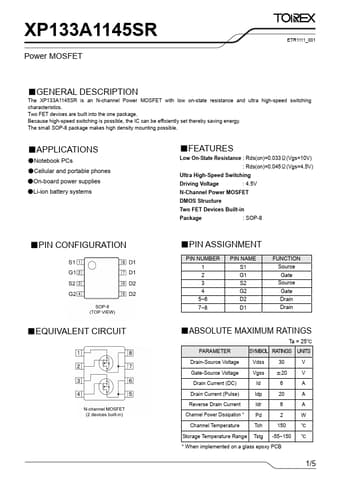

Preview of XP133A1145SR PDF

Datasheet Details

Part number:

XP133A1145SR

Manufacturer:

Torex Semiconductor

File Size:

424.96 KB

Description:

Power mosfet.
