XP133A1330SR, Power MOSFET

XP133A1330SR Power MOSFET ETR1113_001 *GENERAL .
The XP133A1330SR is an N-channel Power MOSFET with low on-state resistance and ultra high-speed switching characteristics.

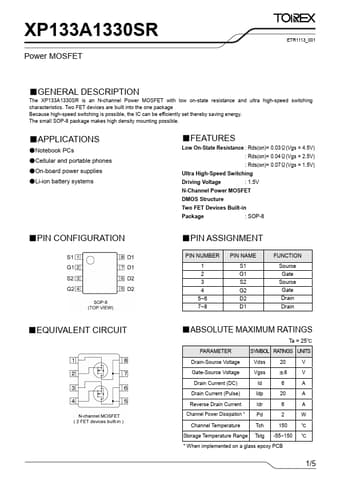

datasheet Preview Page 1 from Datasheet4u.com

XP133A1330SR-TorexSemiconductor.pdf

XP133A1330SR Datasheet Preview — Preview of XP133A1330SR PDF

Datasheet Details

Part number:

XP133A1330SR

Manufacturer:

Torex Semiconductor

File Size:

441.00 KB

Description:

Power MOSFET

Features

* Low On-State Resistance : Rds(on)= 0.03Ω(Vgs = 4.5V) : Rds(on)= 0.04Ω(Vgs = 2.5V) : Rds(on)= 0.07Ω(Vgs = 1.5V) Ultra High-Speed Switching Driving Voltage : 1.5V N-Channel Power MOSFET DMOS Structure Two FET Devices Built-in Package : SOP-8
* PIN CONFIGURATION
* PIN ASSIGNMENT PIN

Applications

* Notebook PCs
* Cellular and portable phones
* On-board power supplies
* Li-ion battery systems
