XP232N03013R-G

N-channel MOSFET

Torex

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Torex Semiconductor LTD	XP232N03013R-G	MOSFET N-CH 30V 300MA SOT323-3	DigiKey	0	150000 units	$0.04	🛒 Buy Now

XP232N03013R-G Datasheet (398.06 KB)

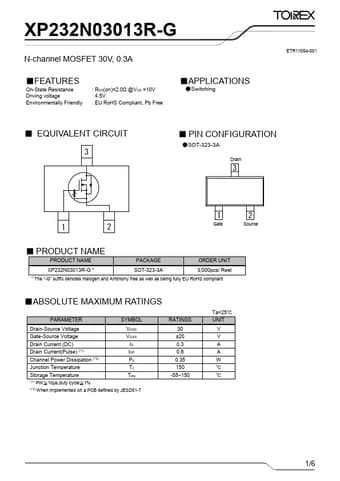

XP232N03013R-G Datasheet Preview — Preview of XP232N03013R-G PDF

Datasheet Details

Part number:

XP232N03013R-G

Manufacturer:

Torex

File Size:

398.06 KB

Description:

N-channel mosfet.

XP232N03013R-G Features

* On-State Resistance Driving voltage Environmentally Friendly : RDS(on)=2.0Ω @VGS =10V : 4.5V : EU RoHS Compliant, Pb Free

* APPLICATIONS

* Switching ETR11054-001

* EQUIVALENT CIRCUIT 3

* PIN CONFIGURATION

* SOT-323-3A Drain 3 1 2 1 2 Gate Source

* PRODUCT NAME PRODUC
