XP2306GN, N-CHANNEL ENHANCEMENT MODE POWER MOSFET

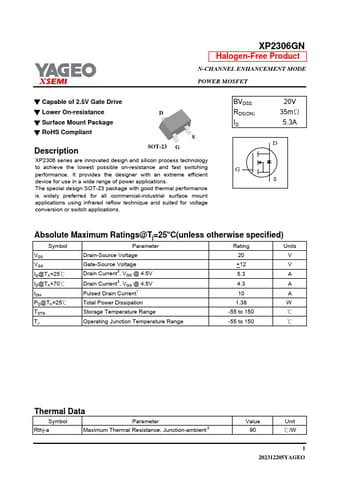

XP2306GN Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Capable of 2.5V Gate Drive ▼ Lower On-resistance D ▼ Surface Mount Package.
SOT-23 G XP2306 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performan.

datasheet Preview Page 1 from Datasheet4u.com

XP2306GN-YAGEO.pdf

XP2306GN Datasheet Preview — Preview of XP2306GN PDF

Datasheet Details

Part number:

XP2306GN

Manufacturer:

YAGEO

File Size:

184.63 KB

Description:

N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The special design SOT-23 package with good thermal performance is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID 20V 35mΩ 5.3A D G S Absolute Maximum Ratings@Tj
