XP2314GN - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

XP2314GN Description

XP2314GN Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Capable of 2.5V Gate Drive D ▼ Lower On-resistance ▼ Surface Mount Package ▼.
XP2314 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP2314GN Applications

* The special design SOT-23 package with good thermal performance is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID G 20V 75mΩ 3.5A D S Absolute Maximum Ratings@Tj=

📥 Download Datasheet

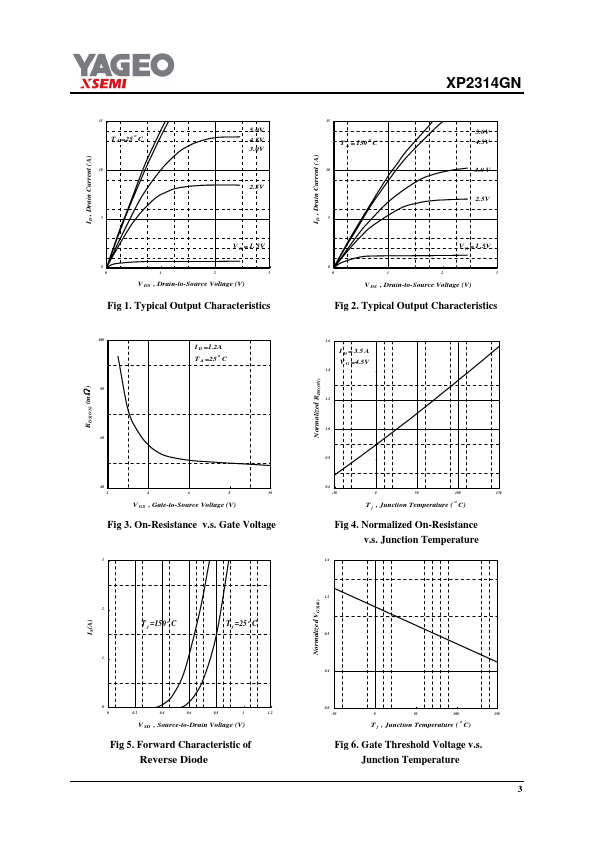

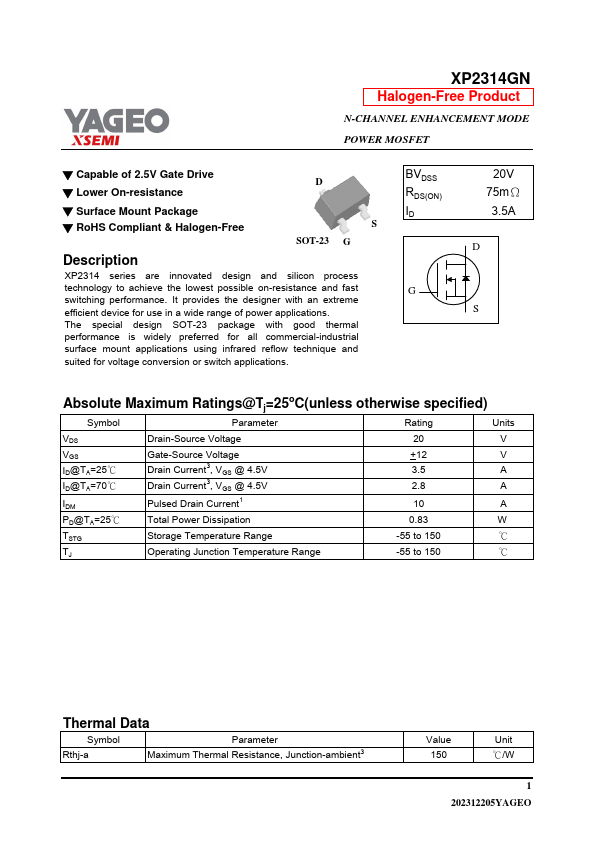

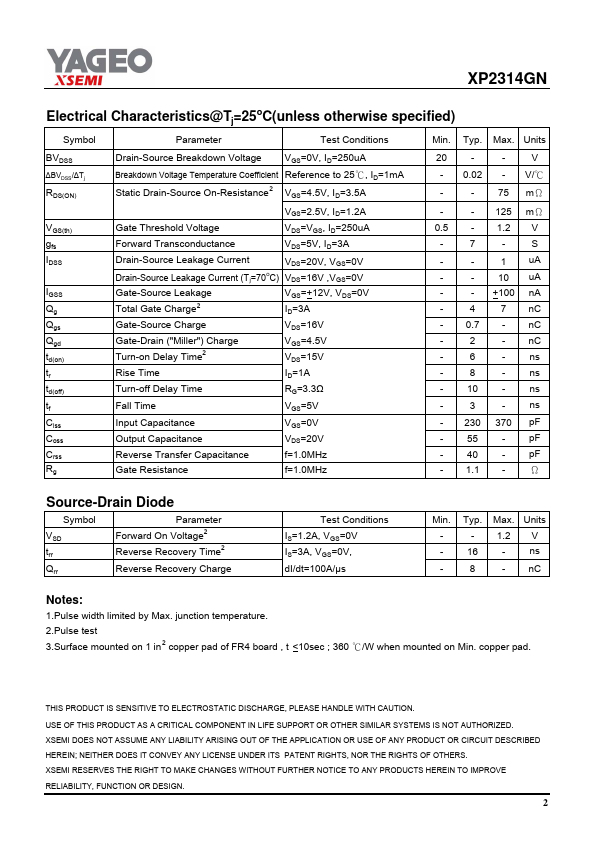

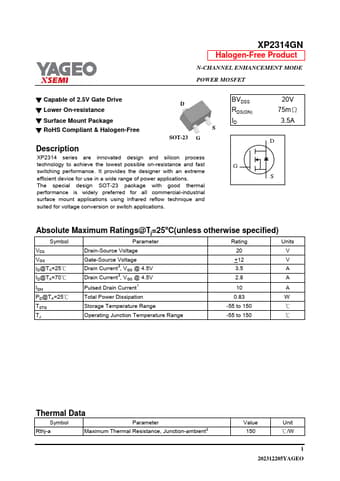

XP2314GN Datasheet Preview — Preview of XP2314GN PDF

Datasheet Details

Part number: XP2314GN
Manufacturer: YAGEO
File Size: 181.95 KB
Datasheet: XP2314GN-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET
