XP231P02015R-G, P-channel MOSFET

XP231P02015R-G P-channel MOSFET -30V, -0.2A *.

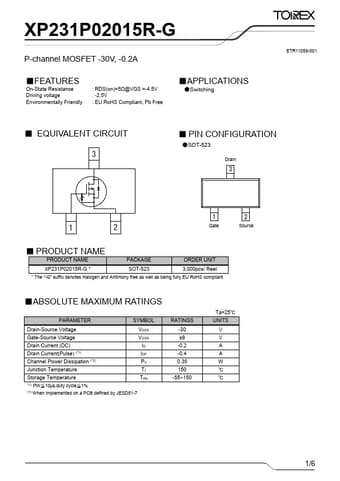

datasheet Preview Page 1 from Datasheet4u.com

XP231P02015R-G-TorexSemiconductor.pdf

XP231P02015R-G Datasheet Preview — Preview of XP231P02015R-G PDF

Datasheet Details

Part number:

XP231P02015R-G

Manufacturer:

Torex Semiconductor

File Size:

388.96 KB

Description:

P-channel MOSFET

Features

* On-State Resistance Driving voltage Environmentally Friendly : RDS(on)=5Ω@VGS =-4.5V : -2.5V : EU RoHS Compliant, Pb Free

Applications

* Switching ETR11059-001
* EQUIVALENT CIRCUIT 3
* PIN CONFIGURATION
* SOT-523 Drain 3 1 2 1 2 Gate Source
* PRODUCT NAME PRODUCT NAME PACKAGE ORDER UNIT XP231P02015R-G
* SOT-523 3,000pcs/ Reel
* The “-G” suffix denotes Halogen and Antimony free as well as b
