XP231N0201TR-G - N-channel MOSFET

XP231N0201TR-G Description

XP231N0201TR-G N-channel MOSFET 30V, 0.2A *.

XP231N0201TR-G Features

* On-State Resistance Driving voltage Environmentally Friendly : RDS(on)＝5.0Ω @VGS =4.5V : 2.5V : EU RoHS Compliant, Pb Free

XP231N0201TR-G Applications

* Switching ETR11041-001a
* EQUIVALENT CIRCUIT
* PIN CONFIGURATION
* SOT-23(TO-236) Drain 3 1 Gate 2 Source
* PRODUCT NAME PRODUCT NAME PACKAGE ORDER UNIT XP231N0201TR-G
* SOT-23(TO-236) 3,000 pcs/ Reel
* The “-G” suffix denotes Halogen and Antimony free as well a

📥 Download Datasheet

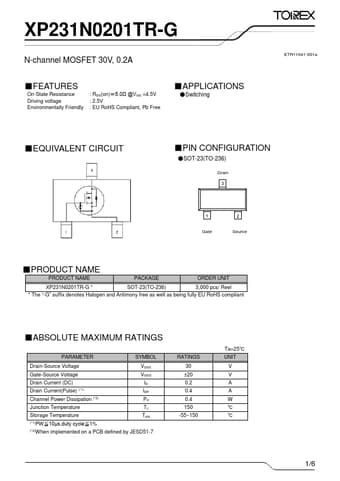

Preview of XP231N0201TR-G PDF
datasheet Preview Page 2 datasheet Preview Page 3
